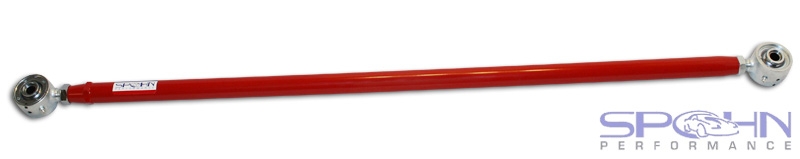

Tubular Adjustable Panhard Bar - Del-Sphere Pivot Joints - 2000-2006 GM SUV: Suburban, Tahoe, Yukon, Avalanche, Escalade, Hummer H2

Suburban Panhard Track Bar | Tahoe Panhard Track Bar | GMSUV-00-06-105
Click Image for Larger View
$199.00
SKU #: GMSUV-00-06-105
Brand: Spohn Performance
* Indicates a required field.
Choose Your Options:

Shipping Quote

Choose your options above and enter your postal code to get a shipping quote (US & Canada only).

Description

Videos



Application:

2000-2006 Chevrolet Suburban 1500 & 2500
2000-2006 Chevrolet Tahoe
2000-2006 GMC Yukon
2000-2006 Chevrolet Avalanche
2000-2006 Cadillac Escalade
2000-2009 Hummer H2

Replace the factory's weak, stamped steel, flexible panhard bar with one of our heavy duty set-ups! Allows for centering the rear end after lowering or lifting. The best component for serious off road handling and towing performance.

Allows for lateral alignment of the rear end for clearance when running larger tires and greatly increases the rear end's lateral stability. The Del-Sphere pivot joints provide for 28 degrees of articulation, perfect for the off road enthusiast looking for maximum suspension articulation!


Del-Sphere Pivot Joints:

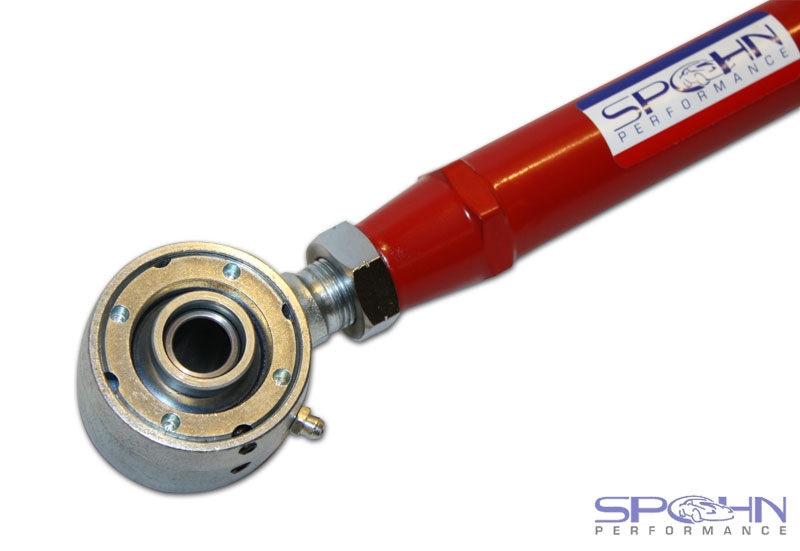

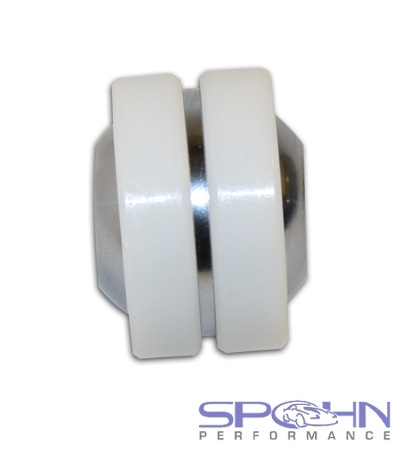

The Spohn Performance Del-Sphere pivot joint solves the shortcomings of the factory rubber and aftermarket polyurethane bushings. Our Del-Sphere pivot joint incorporates a spherical ball which is surrounded by delrin bushing cups. This combination allows the panhard bar to articulate like a spherical rod end (28 degrees of available rotation) during cornering but the spherical ball does not allow the bushing to deflect. Therefore the panhard bar remains completely bind free like a spherical rod end during cornering for predictable traction in the corners.

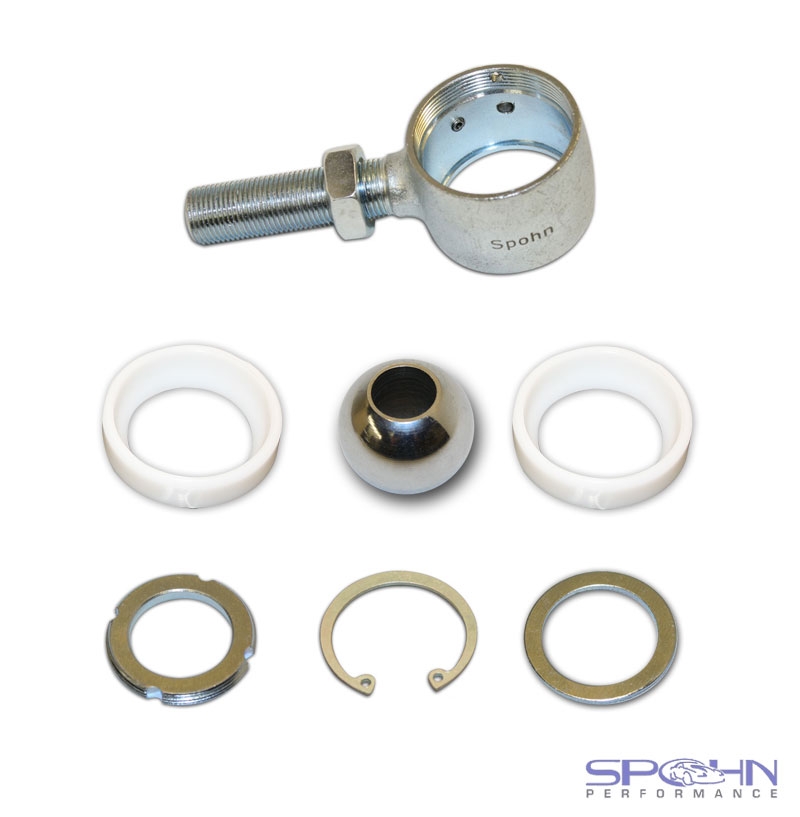

Think of the Del-Sphere pivot joint as a Delrin bushed spherical rod end. After over a year of R&D testing here at Spohn Performance on a streetable spherical joint the Del-Sphere pivot joint is the final result. Designed and manufactured exclusively by Spohn Performance, we have taken street suspension performance to the next level. Our Del-Sphere pivot joint features a one piece forged and heat treated chrome moly housing, a heat treated and chrome plated chrome moly spherical ball, Delrin bushing cups, heat treated retainer washer and snap ring, heat treated and chrome plated chrome moly threaded adjuster ring, an external grease fitting and a beautiful silver zinc plated housing finish.

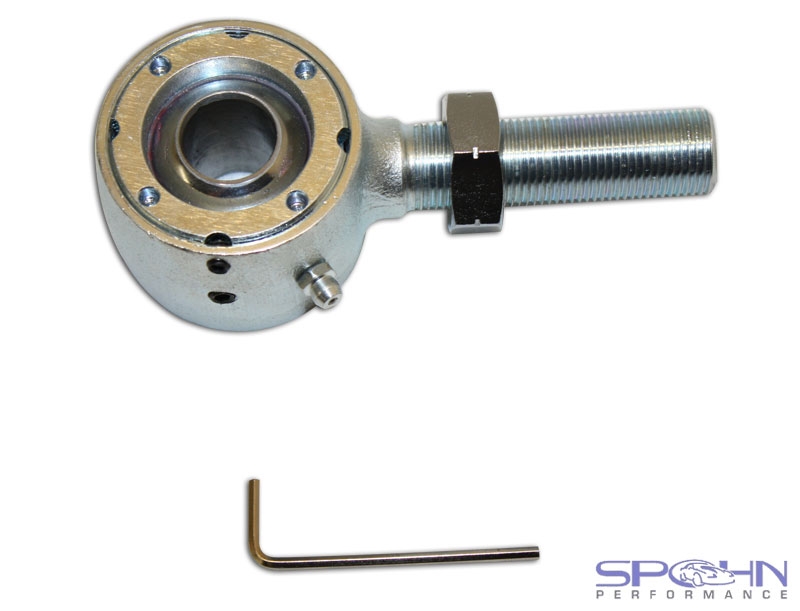

The Delrin bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 28 degrees of rotation! Our Del-Sphere pivot joints will always ship to you fully assembled, however, we also offer an optional adjusting tool that will allow you to do two things. First, you can disassemble the Del-Sphere pivot joint for cleaning, inspection, etc. Second, you can adjust the amount of friction on the spherical ball. Do you want a very low friction pivot joint or a very tight pivot joint? It's up to you, the amount of tension can be easily adjusted by using our optional adjustment tool to tighten or loosen the end retainer ring. What that also means is if over time and miles the tolerances open up you can simply re-adjust the retainer ring and have your pivot joint as tight as it was the day it was brand new. We doubt you'll ever need to replace the Delrin bushing cups, but they certainly can be. Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.

What is Delrin, and why did you choose to use it? Delrin is an acetal homopolymer made by DuPont. It is characterized as having an excellent combination of physical properties that make it suitable for numerous applications. With extremely low moisture absorption and a low coefficient of friction (self-lubricating), Delrin is uniquely tailored for wear applications in high humidity or moisture environments. Delrin will maintain constant physical properties under high moisture conditions and out-perform nylon or polyurethane under these conditions. Delrin has a 10,000 psi tensile strength and a 120 Rockwell Hardness rating making it ideal for our Del-Sphere application.

Build Specifications:

  • 1.25" x .095" wall DOM tubing
  • Stronger, yet lighter than stock
  • TIG welded 4130N chrome moly threaded tube adapters
  • 3/4" Del-Sphere Pivot Joints
  • Right hand and left hand threaded ends with integral wrench flats allow for easy on-truck adjustment - Ships jig set at OEM length
  • CNC machined through sleeve and zinc plated steel spacers keep Del-Sphere ends perfectly centered inside of the vehicle mounting brackets
  • Reuses OEM mounting hardware, no need to drill out your mounting brackets
  • Available powder coated in your choice of the above colors
