Tapered Tie Rod to Spindle Adapter Sleeve | Jeep JK Wrangler (2 Door) & Wrangler Unlimited (4 Door)
The Mountain Goat Series™ SKU#
HSDL-1375 extreme duty high steer drag link allows the drag link to be flipped to the top of the spindle to correct the steering geometry on a lifted Jeep® JK

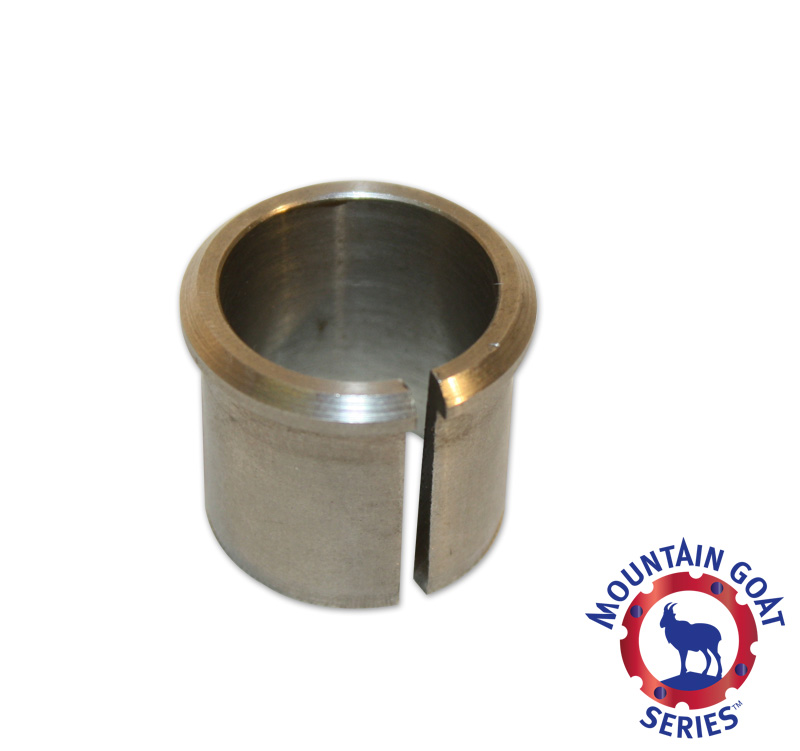

Wrangler. This tapered spindle adapter sleeve is designed to allow you to flip the taper on the spindle without the need to do any reaming to correct the taper.

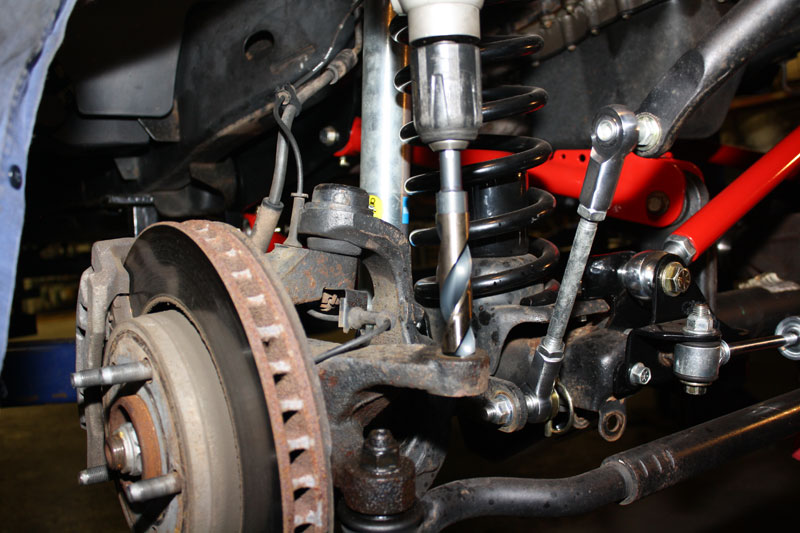

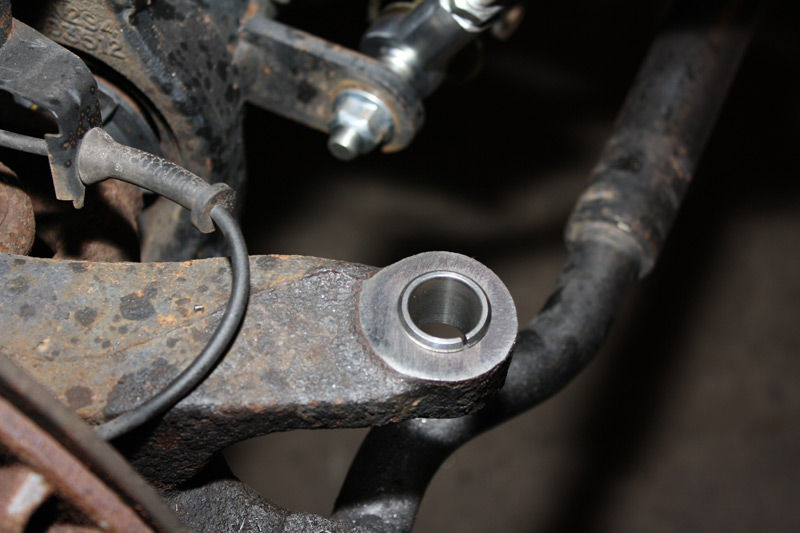

You simply drill out the existing tapered hole in the spindle with a 53/64" drill bit and then insert this tapered adapter sleeve through the top of the spindle hole. Our tapered spindle adapter sleeve is CNC machined from 304 stainless steel to insure a long and corrosion free service life.
It is sold individually as only one is required on the passenger's side front spindle.
Universal Applications: This tapered spindle adapter sleeve can be used on MANY applications for those who are building custom flipped drag links equipped with GM 1 ton style tie rod ends, etc. The specifications you need to know are - Spindle Hole Drill Size: 53/64", Taper Included Angle: 7.15° (1.5"/ft.), Overall Length: 0.85", Length Under Top Shoulder: 0.75", I.D. Major Diameter: 0.76", I.D. Minor Diameter: 0.66".
Note: This Part# JK-HSSA1 tapered spindle adapter sleeve is included with the Part# JK-HSDL-1375 high steer drag link package. This is offered as an extra, a replacement or for universal applications.
