Tapered Reamer | 7.15 Deg. = 1.5" Per Foot | High Speed Steel | GM 1 Ton Style Tie Rod End

Tapered Reamer | 7.15° = 1.5" Per Foot | GM 1 Ton Style Tie Rod End
Click Image for Larger View
SKU #: TR715-15
Brand: Mountain Goat Series
* Indicates a required field.

Shipping Quote

Choose your options above and enter your postal code to get a shipping quote (US & Canada only).


Application: Universal

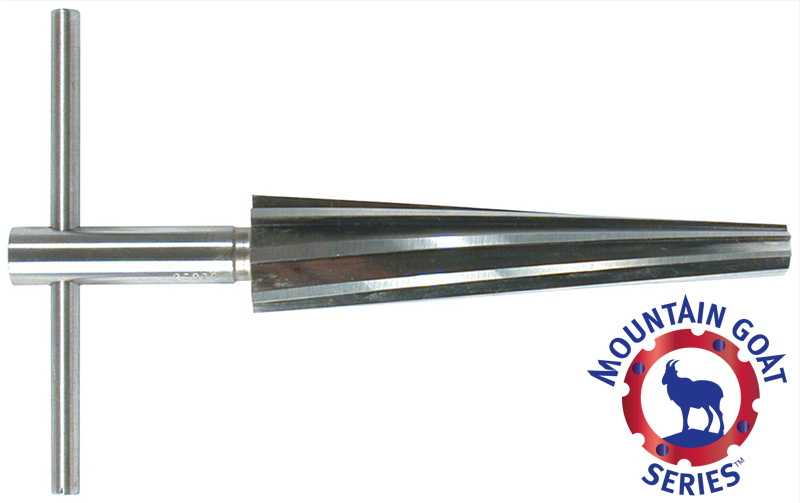

The Mountain Goat Series high speed steel tapered reamer allows you to repair, enlarge, and/or create tapered holes to accept tie rod ends or ball joints. This tapered reamer can be used in a tap wrench, a vertical mill, a drill press, or in a hand drill with a 1/2" chuck or collet.

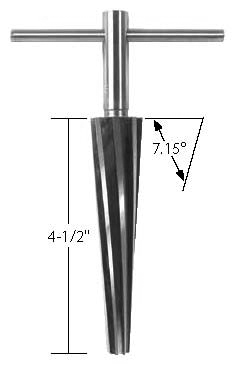

  • Major Diameter: 1.00"
  • Minor Diameter: 0.4375"
  • Taper Included Angle: 7.15┬║ (1.5"/Ft.)
  • Shank Diameter: 0.50"
  • Flutes: 6
  • Flute Length: 4.50"
  • Overall Length: 6.50"

* This tapered reamer can be used to ream the spindle hole when doing a high steer drag link flip on a Jeep┬« JK Wrangler using our Part# JK-HSDL-1375 drag link.

Mountain Goat Series´┐Ż Jeep JK Suspension
