Moser Engineering - 12 Bolt Rear - Complete
SKU # Moser12-3
Price: $2009.00

Center Section:	Select One Spool - 30 Spline Spool - 33 spline Eaton Posi - 30 Spline +$295.00 Eaton Posi - 33 Spline +$375.00 Detroit Truetrac - 30 Spline +$335.00 Detroit Truetrac - 33 Spline +$405.00
Gear Ratio:	Select One 3.08 3.42 3.55 +$65.50 3.73 3.91 4.11 4.30 4.56 4.88 5.14 5.38 4.11 Competition Gear +$155.00 4.33 Competition Gear +$155.00 4.56 Competition Gear +$105.00 4.88 Competition Gear +$105.00 5.14 Competition Gear +$105.00 5.38 Competition Gear +$105.00
Wheel Studs:	Select One Metric - Std. Length Metric - Extended Length +$10.00 1/2"-20 Std. Length 1/2"-20 Extended Length +$10.00 5/8"-18 - Extended Length +$10.00
Rear Cover Type:	Select One Chrome Cover Aluminum Girdle Cover +$135.00
Rear Brakes:	Select One 82-92 Drum Brakes will NOT fit! Moser 11" Drum Brake Kit +$500.00 82-92 9 Bolt Disc Brakes 82-92 10 Bolt Disc Brakes 93-97 F-Body Rear Disc Brakes 98-02 F-Body Rear Disc Brakes Wilwood from Spohn Other - Spohn will contact you
Sway Bar Install Kit:	Select One None Install Kit - Red +$75.00 Install Kit - Black +$75.00
Conversion U-Joint:	Select One No U-Joint Yes - Add Conversion U-Joint +$43.50
LCA Relocation Brackets:	Select One No Relocation Brackets Install Relocation Brackets +$100.00
Housing Finish:	Select One Bare Powder Coated Black +$250.00

Application: 1982-1992 GM F-Body

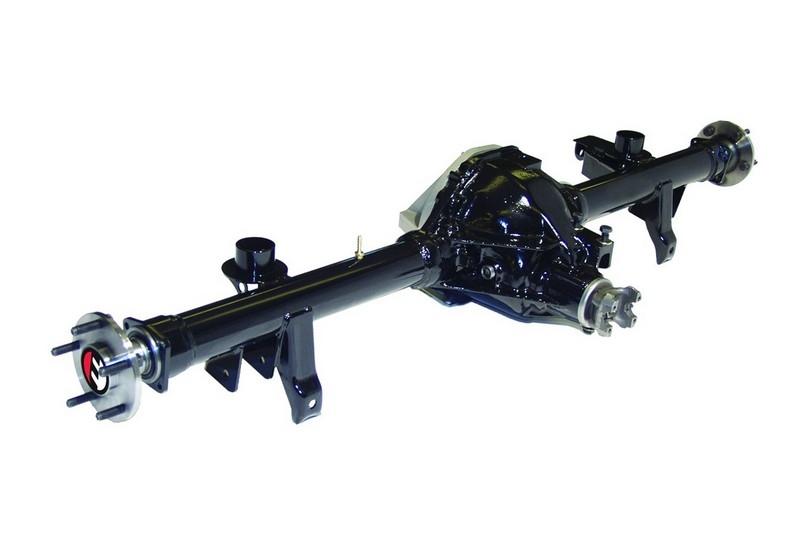

The Moser Engineering GM 12 Bolt: The strongest replacement 12 Bolt on the market.

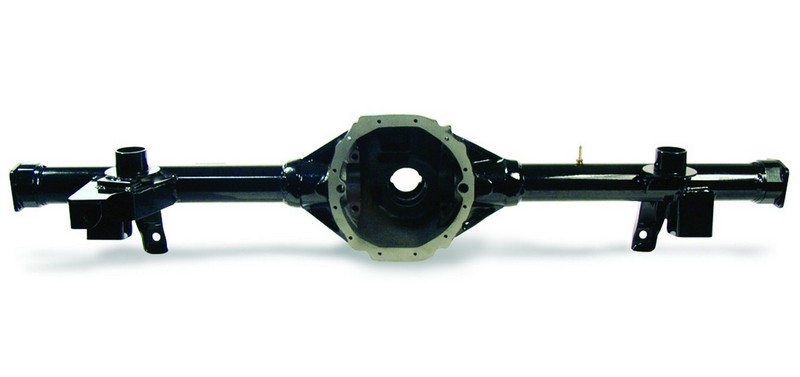

The newly cast nodular iron housing unit is a direct replacement rear end for F-Body torque arm OEM applications. The extremely durable housing unit has giant caps utilizing half inch Allen bolts, and includes a complete differential, torque arm mount, and brackets. Utilizing new housing ends adds to the simplicity and ease of installation, which is unparalleled in the industry. The new 12 Bolt housing units vary in style and pricing, but one thing stands true: Moser Engineering prides itself in manufacturing products of the highest quality, at an affordable price, in a short amount of time. Order one today and bolt in a bullet-proof rear that will take a beating!

Email our Tech Department with any questions you may have on what components are best suited for your application. You have many options to choose from in the drop down option boxes.

The Moser rear comes equipped with a 1350 series pinion yoke. If you will be re-using the stock driveshaft, you will need a conversion u-joint.

To install a stock style sway bar, you will need a Spohn Performance sway bar installation kit.

Note: 1982-1992 F-Body rear drum brakes are not compatible and can't be used. 1982-1992 F-Body 9 or 10 bolt rear disc brakes will require modifications to the backing plates (drawing included). 1993-1997 and 1998-2002 F-Body rear disc brakes, Moser Ford drum brake kit, and Wilwood rear disc brakes will install with no modifications.

Shipping Notice: All 12 bolt complete rears must ship by truck freight. If you have any questions, feel free to email our sales team!
